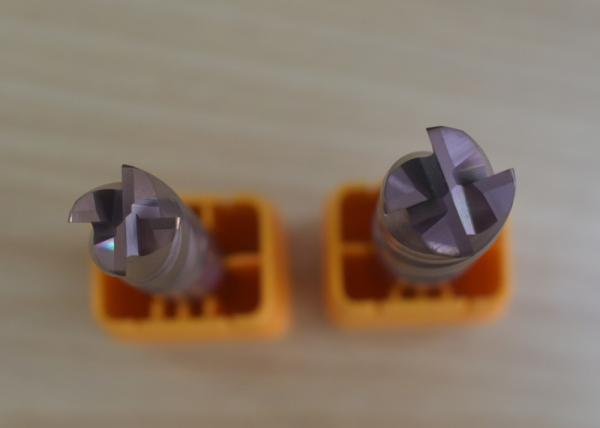

60degree corner radius end mill,carbide corner rounding end mill,carbide end mill bits,tungsten carbide end mill

The Corner Radius End Mill combines the advantages of ball nose end mill and flat end mill. The curve surface of the cutter head is not as big as that of the ball nose end mill, but only a small radian angle, so the tip of flute will not easily wear out as ball nose end mill.

Because the center point of the ball nose end mill is always static in high speed milling, which makes the tip of ball nose end mill act to the workpiece in a grinding way instead of milling, so the end of flute is easily wear out, corner radius end mill doesn’t have this problem. At the same time, the bottom of the end mill maintains the characteristics of the flat end mill. Which enables it to mill flat workpiece surface in a good quality. However, the range of the curved surface can be milled by corner radius end mill is not wide, it is suitable for small angle curved surface milling, you need to use ball nose end mill for big angle curved surface milling.

Popular standard size(Can be available from stock, ready to ship):

Standard size: Long:

For milling workpiece of which hardness is HRC 55 to 60 degree, carbide grade BT55 is applied as raw material(ground carbide rod), BT45 has below physical characters:

Features:

Grade:BT55

Co%:12

Grain Size:0.4um

Density (g/cm):14.1

Hardness(HRA):92.6

TRS N/mm2:4600

Application:For cutting tools machining titanium alloy, heat resistant alloy, stainless steel, quenched steel(HRC55-58), gray cast iron.

Please Contact Us for Further Details.

Xiamen Betalent Carbide Co., Ltd is a company focus on producing cemented carbide blanks and CNC carbide routers. It is located in Xiamen, Dongguan, Ganzhou of China, head office and main plant is in Xiamen, plants covering an area over 10000M2, employee number is around 150, among them there is a 15 technician team continually research and develop new items and offer professional technology back up to sales staff, a 20-person quality control team. Betalent carbide factory has advanced facilities and inspection instruments, offer carbide products to the middle to the high-end market
