63 degree solid carbide end mills, 4flute end mill cutter, end mill
tool, flat end mill
Flat end mill can remove large quantity of workpiece blank material
quickly, can semip-finish or rough milling of horizontal plane,
profile, groove. Because of the general application character, flat
end mill is more popular then other type of end mill.
There are 2 flute(for key slot milling), 3 flute(for aluminum or
copper milling), 4 flute(general milling), 6 flute(special
application most in customize) flat end mills. 4 flute flat end
mill is the most general flat end mills.
For milling workpiece of which hardness is below HRC 55 to 60
degree, carbide grade BT55 is applied as raw material(ground
carbide rod), BT60 has below physical characters:
| Grade | Co% | Grain Size | Density (g/cm) | Hardness(HRA) | TRS N/mm2 | Application |
| BT60 | 9 | 0.2 | 14.35 | 94.1 | 5000 | For cutting tools machining quenched materials (HRC60-65), hardwood
and high polishing cutters. Finish machining 316L stainless steel. |
Popular standard size(Can be available from stock, ready to ship):
| Cutting diameter | Shank dia. | Total length | Flute |
| 1.0mm | 4mm | 50mm | 4 |
| 1.5mm | 4mm | 50mm | 4 |
| 2.0mm | 4mm | 50mm | 4 |
| 2.5mm | 4mm | 50mm | 4 |
| 3.0mm | 3mm | 50mm | 4 |
| 3.0mm | 4mm | 50mm | 4 |
| 3.5mm | 4mm | 50mm | 4 |
| 4.0mm | 4mm | 50mm | 4 |
| 5.0mm | 5mm | 50mm | 4 |
| 5.0mm | 6mm | 50mm | 4 |
| 6.0mm | 6mm | 50mm | 4 |
| 8.0mm | 8mm | 60mm | 4 |
| 10.0mm | 10mm | 75mm | 4 |
| 12.0mm | 12mm | 75mm | 4 |
| 14.0mm | 14mm | 100mm | 4 |
| 16.0mm | 16mm | 100mm | 4 |
| 18.0mm | 18mm | 100mm | 4 |
| 20.0mm | 20mm | 100mm | 4 |

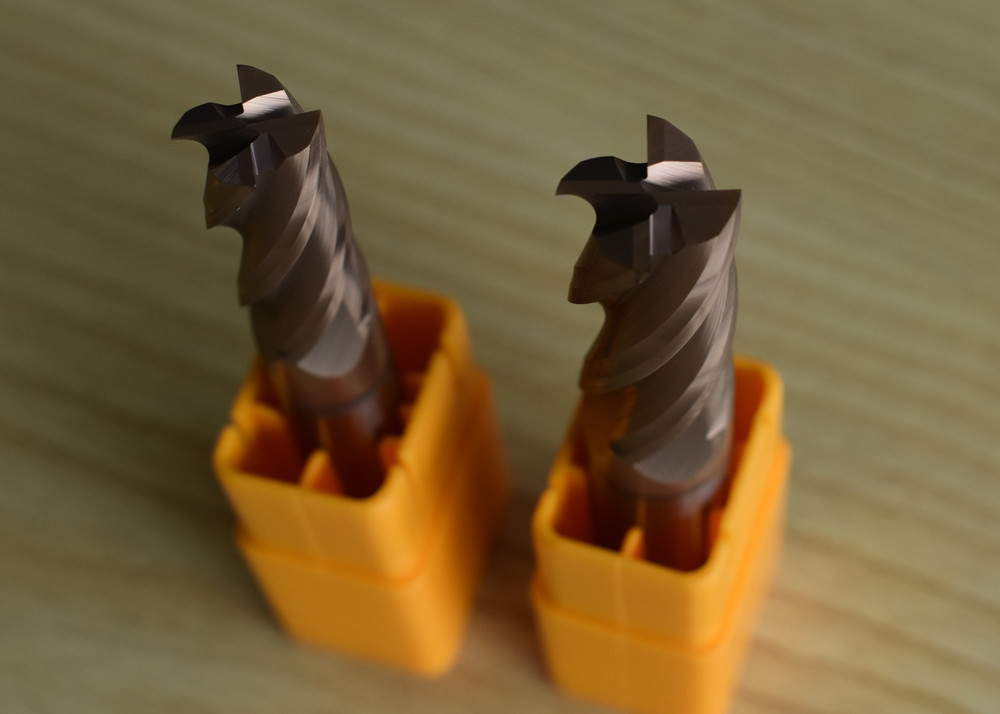

product picture:
Because of the very wide application of carbide flat end
mill,different carbide grades are applied as the material to
different work piece materials, accordingly, carbide end mills can
be classified by work piece hardness, there are flat end mills for
milling HRC45(+/-3degree),
HRC50(+/-3degree),HRC55(+/-3degree),HRC60(+/-3degree). Different
coatings are applied to fit difference hardness material milling.
They are copper TiSiN coating for HRC45, black NaCo4 coating for
HRC50, light copper nACXCo4 coating for HRC55, blue nACo4 coating
for HRC60. And for specific materials milling, there are specific
design, specific coating combines specific carbide grades. For
example, there are carbide flat end mills specially for aluminum
and copper(BT50 carbide grade,no coating, AD coating or DLC
coating), there are carbide flat end mills for stainless
steels(BT50 or BT55 carbide grade, grey black TiAlSiN coating).
